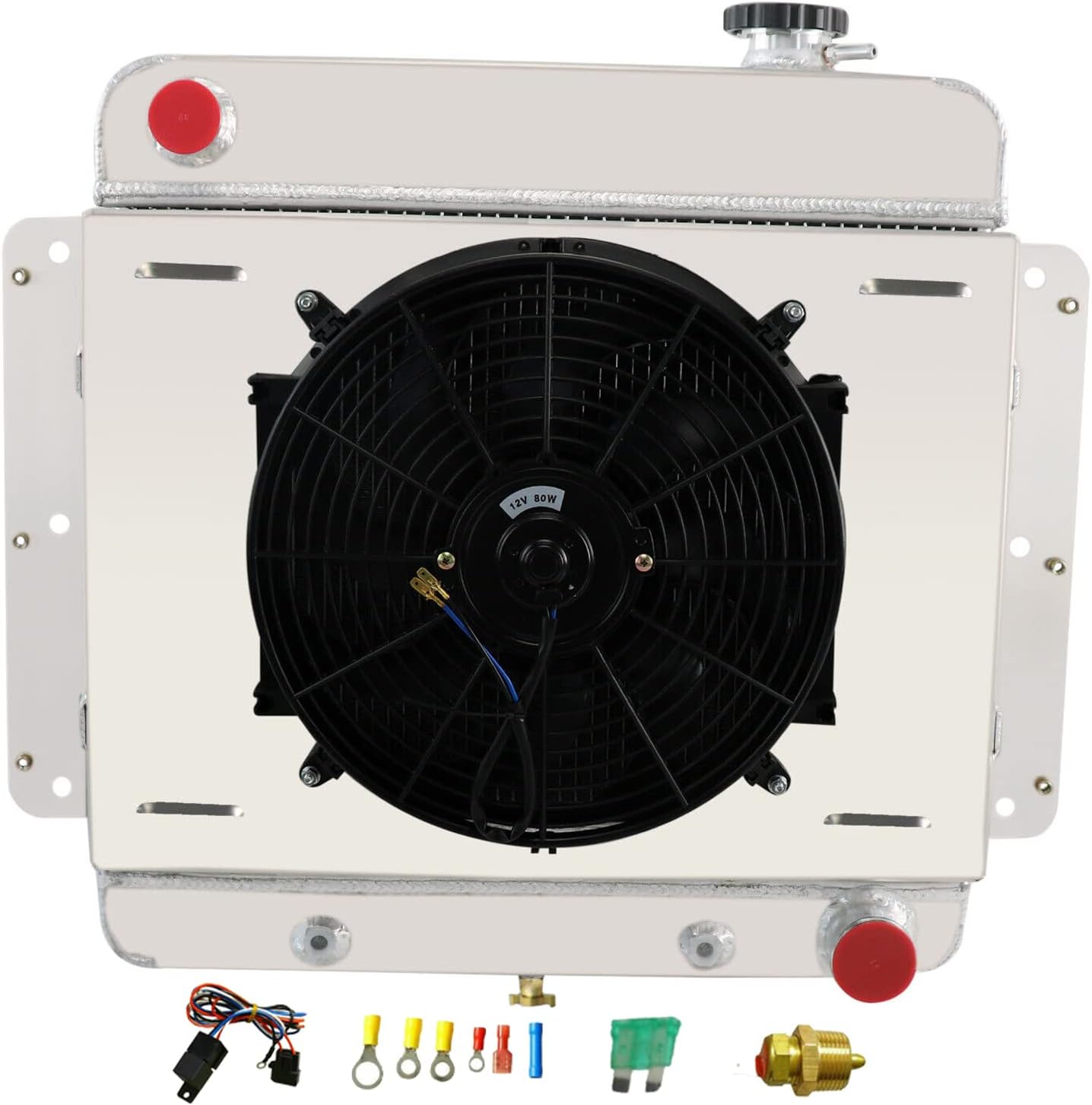

Full Aluminum Radiator For 1962-1967 Chevy Nova Chevy II Inline L6 V8 3.2L 3.8L 4.1L 4.6L Nova Radiators 4 Row Core Radiador Shroud 14" Fan Thermostat Relay Kit Radiadors

Fitment: 1962-1967 Chev Chevy II 2.5L l4 1962-1967 Chev Chevy II 3.2L l6 1964-1966 Chev Chevy II 3.8L l6 1967 Chev Chevy II 4.1L l6 1963-1967 Chev Chevy II 4.6L V8 1965-1967 Chev Chevy II 5.3L V8 Part Number: 255,CC255,EC255,MC255 This Listing Is Including: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 14" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN DETAILS: Maximum Fan CFM: 2200±200 FAN DIAMETER X HEIGHT X THICKNESS:14.05" X 14.05" X 2.5" Number of Blades: 8 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Radiator Details: radiador de aluminio Material: All Aluminum ; Aircraft 5057 grade aluminum Fitment Type: Direct Replacement Crafts: 100% Tig welded Delivery: Local Delivery Placement on Vehicle: Engine Compartment Trans Cooler: 1/2-20“ Straight Thread, G 1/4” Mounting Type: Bracket Mount Style: Downflow Radiator Mounting Style: Screw-On Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.

• Radiator : Core Size : 14.18" H x 18.43" W x 2.44" T; Overall Size: 21.26" H x 24.41" W x 6.5" T
• 4-Row Radiator: Inlet/Outlet: 1.38"/1.77";Trans Cooler: ￠32×215×G1/4（Z）
• Includes CNC machined filler neck and cap;OEM Style Brass Petcock Drain.
• High performance,30% extra flow
• 12 Months warranty ; If you have any questions, please feel free to contact us, we will solve it for you
